TVMSKIT05 Management System

TVMSKIT05 combines the innovative, award-winning RedVision Total Vehicle Management System with the renowned 30 A Manager30 Battery Management System, providing complete control and monitoring of your 4×4 vehicle, caravan or campervan.

UNPRECEDENTED LEVEL OF AUTOMATION

RedVision allows you to control multiple onboard devices, including lighting, fans, water pumps, televisions and electric steps, as well as switch refrigerators on and off.

The system can also monitor up to six separate water level and temperature sensors. When combined with Manager30, it allows you to monitor energy consumption and storage using the included in-vehicle display or the dedicated app for Android and iOS devices.

COMPLETE BATTERY MANAGEMENT SOLUTION

The kit includes the Manager30 main unit, REDARC’s award-winning 30 A battery management system designed to charge auxiliary batteries used in automotive and marine applications.

The DC-to-DC charger supports AC, DC and solar inputs to ensure optimum charging of the auxiliary battery. It is suitable for all major battery types, including lead-acid, lithium, gel, calcium and AGM batteries.

Manager30 performs the functions of six separate products. It charges the auxiliary battery while driving, operates as a 240 V battery charger, solar regulator, battery isolator and load-disconnect controller, and provides remote battery monitoring with information about its state of charge.

FEATURES

• Combines power protection, distribution and control in a single system
• The distribution box processes input data from multiple components, allowing Manager30 to provide accurate monitoring of energy consumption and battery charging information
• Supports inputs for monitoring up to six water level and temperature sensors
• Allows devices such as lighting, televisions, electric steps and other electrical loads to be switched on and off
• Bluetooth connectivity with BYOD support for iOS and Android through the RedVision user app
• Fully customisable home screen using the RedVision Configurator app

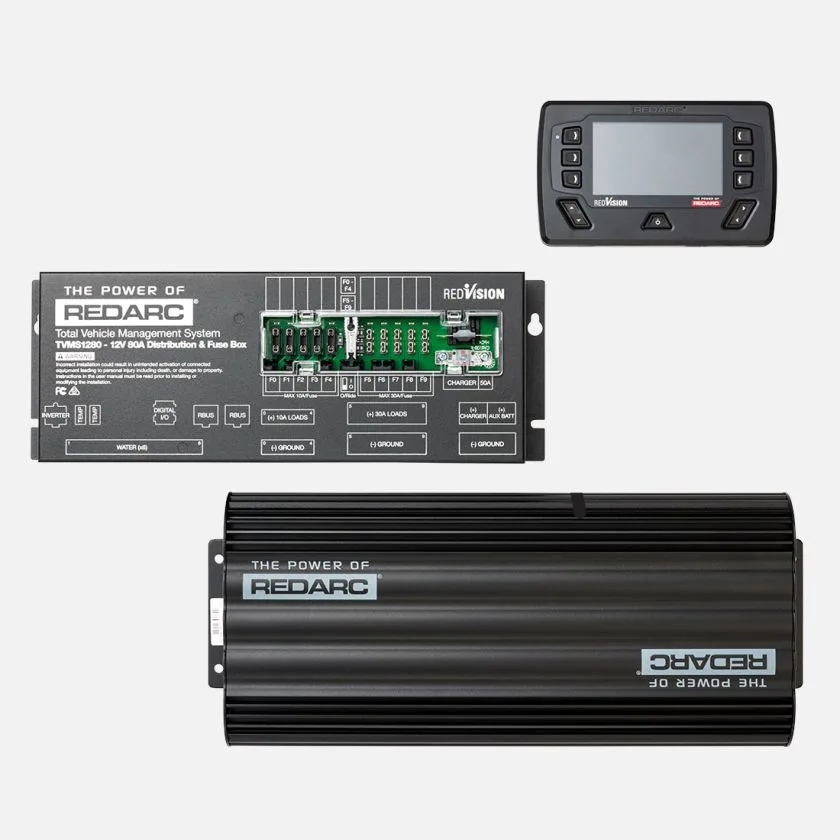

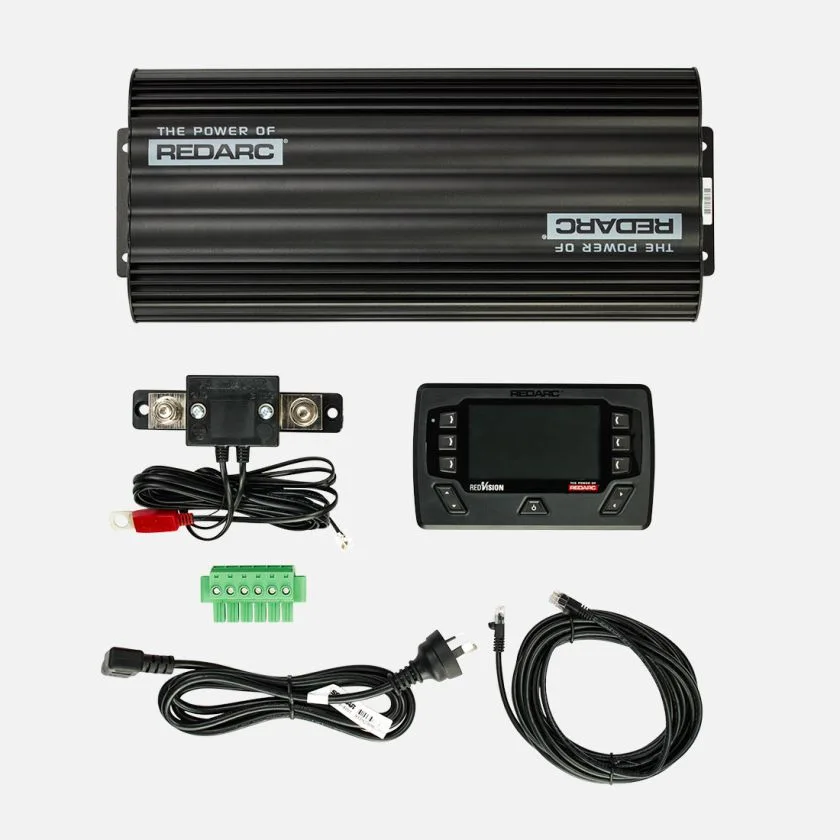

THE KIT INCLUDES

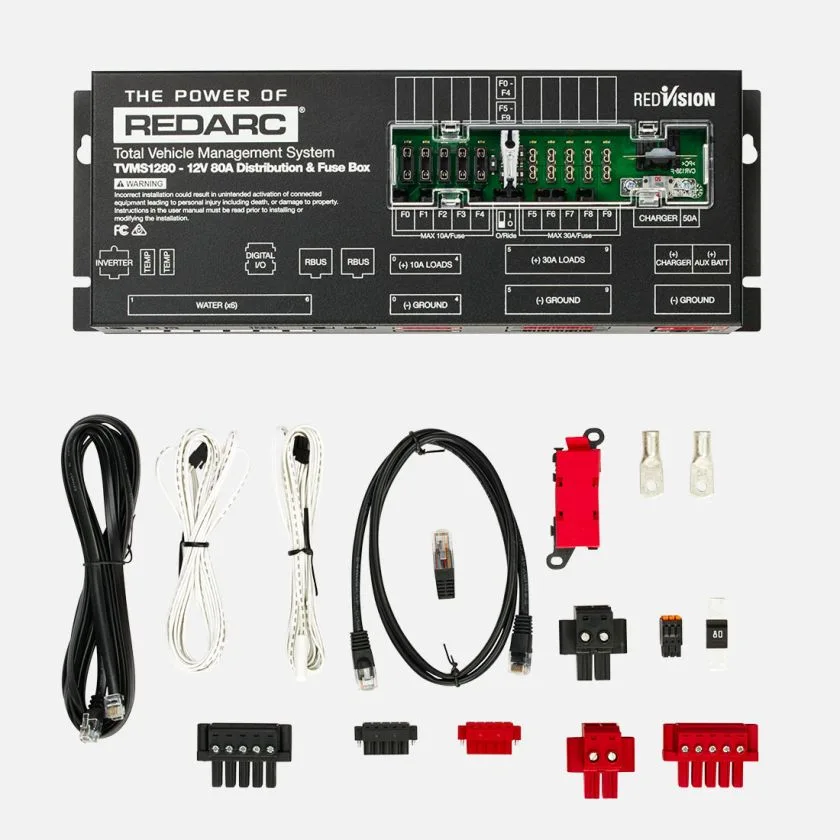

• RedVision distribution box
• In-vehicle RedVision colour display
• Manager30 Battery Management System main unit
