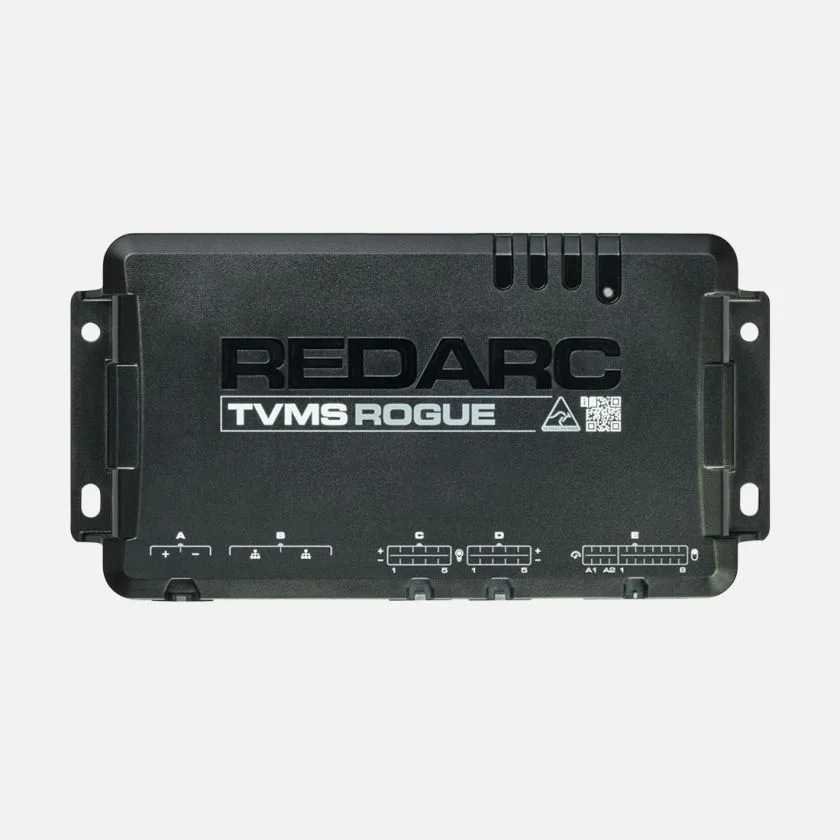

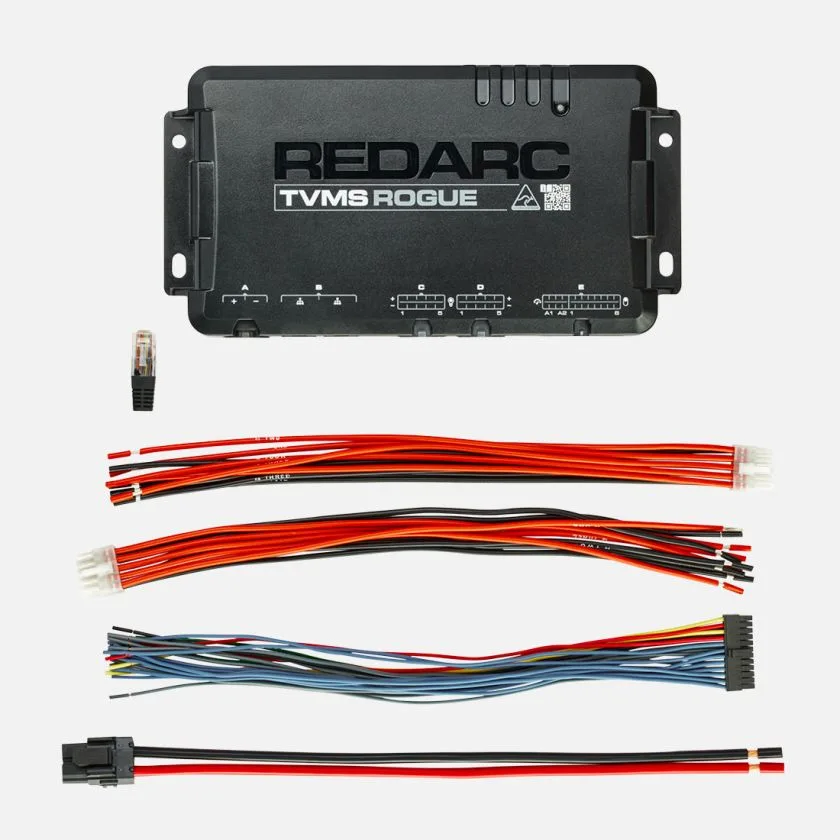

TVMS Rogue Module

REDARC’s RedVision provides an unprecedented level of control and automation in trucks, caravans, campervans and commercial vehicles.

Control accessories such as lighting, refrigerators, televisions and fans using the control panel or a Bluetooth-connected mobile device.

At just 1 inch thick and featuring built-in smart fuse protection, TVMS Rogue takes up very little space, making it ideal for vehicles where installation space is limited.

Its dimmable outputs make the Rogue RedVision system ideal for lighting and low-power devices such as refrigerators and fans.

When combined with Manager30, sold separately, and a RedVision display, also sold separately, TVMS Rogue provides access to accurate real-time information about battery state of charge, power consumption and ambient temperature.

Two analogue inputs for fluid level sensors allow accurate monitoring of multiple tanks, and Rogue is compatible with most commonly used sensors.

CONTROL

TVMS Rogue provides full control over a wide range of onboard equipment, including lighting, fans, refrigerators and pumps. Each of the 10 output channels supports dimming, while the built-in switch inputs make Rogue ideal for lighting circuits.

With the ability to connect Rogue to up to eight physical switches, control is not limited to the RedVision screen or mobile app.

This allows you to control lighting from multiple locations throughout the campervan or add reed switches that automatically activate lights when a door is opened.

AUTOMATION

Save time and energy by using RedVision to automate everyday tasks. At the touch of a button, you can switch off everything except the refrigerator or automatically disconnect non-essential equipment when the battery charge level falls.

For a complete RedVision solution, combine TVMS Rogue with the Manager30 Battery Management System.

FEATURES

• 10 dimmable 10 A outputs
• 8 inputs for connection to physical switches
• Compact design
• Built-in smart fuse protection
• Simplified installation and configuration
• Fully programmable system
• Accurate analogue inputs for monitoring tank levels

DISPLAY COMPATIBILITY

TVMS Rogue is compatible with DISP4300-RC displays manufactured from January 2023 onwards, with serial numbers beginning with “23”.

Displays manufactured between July 2022 and January 2023 can be upgraded. This applies to serial numbers ranging from “2207” to “2212”.

APP AVAILABILITY

The TVMS Rogue Configurator app is currently available for iOS, with an Android version coming soon. The configuration app is only required for the initial installation and setup.

The user app is already available for both iOS and Android.
